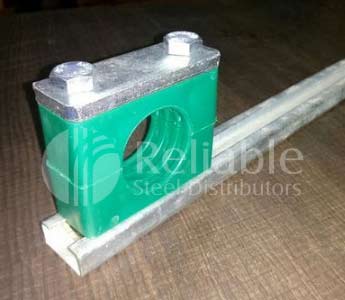

Rail Mount Tube Clamp
| Size | 1 /4″ to 2 ½” – 6 mm to 76.1 mm |
| Raw Material | SS 304, C.S, SS 3014 L, SS 316, SS 316L |
| Thickness | 1.5 mm – 3 mm |
| Finish | Galvanized 275 GSM |
| C Channel Size | 1 meter |

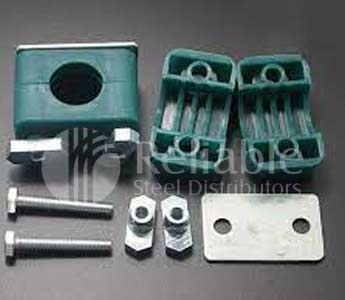

Rail Mounted Tube Clamps
| Size | 1/2 to 4 inch |
| Packaging Type | SMALL BOX WITH PACKETS |
Features of Rail Mounted Tube Clamps
- Pressure Pipeline system requirements.
- Temperature requirements in pipe systems
- Chemical corrosion, salt water application, critical atmospheric conditions, and fire safety application are all examples of applications.
- The installation of clamps on the structure determines which mounting types of clamps will be used.

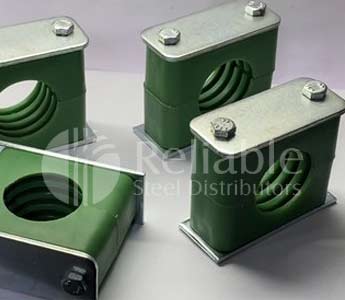

Rail Mounted Standard Series Clamps
| Standard | DIN 3015 – Part -1 |
| Pressure Range | 1500 PSI (100 BAR) |
| Material | Carbon steel / Stainless steel |

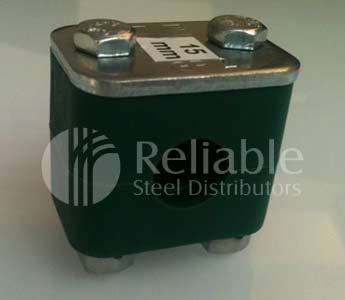

Rail Mounted Heavy Series Clamps
| Standard | DIN 3015 – Part -2 |
| Pressure Range | 1500 PSI (100 BAR) |
| Size | 6 mm to 219 mm |
| Material | Carbon steel / Stainless steel -304 or 316 |

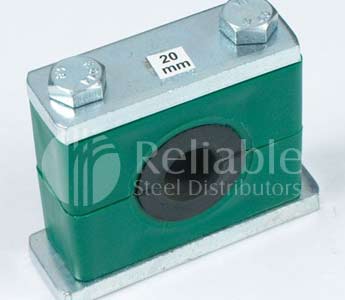

Rubber Insert Tube Clamps
| Standard | DIN 3015 – Part -2 |
| Plastic | Plastic Polypropylene –dark green colour |
| Size (OD) | 6 mm to 219 mm |
| Material | Carbon steel / Stainless steel -304 or 316 |

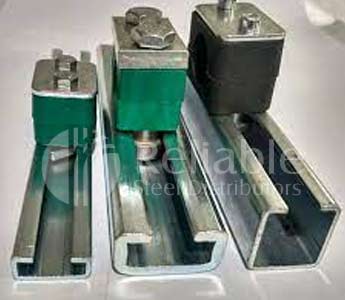

Rail Nuts for Clamps
| Standard | DIN 3015 – Part -2 |
| Plastic | Plastic Polypropylene –dark green colour |
| Size (OD) | 6 to 219 mm |
| Pessure Range | Upto 8000 psi (600 BAR) |
