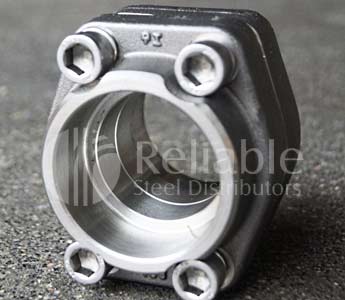

SAE Flanges
| Size | 1-5 inch |
| Material Standard | ASTM A182 |
| Material | Carbon Steel, Stainless Steel |
| Color | Metallic Grey |
| Rated Pressure (Bar) | 3000 PSI & 6000 PSI |
Bolts Sizes Used in SAE Flanges
| SAE FLANGES | METRIC BOLTS | DIN 912 -8.8 Or DIN 912 -10.9 |
| 4 BOLT SQAURE FLANGES | METRIC BOLTS | DIN 931 / 934 -10.9 |
| GEAR PUMP FLANGES | METRIC BOLTS | DIN 912 -8.8 |
| SAE FLANGES | UNC BOLTS | ASA B 18.3 |
| CETOP FLANGES | METRIC BOLTS | DIN 931 / 934 -8.8 OR DIN 931 / 934 -10.9 |
Various Connections of SAE Flanges
| Sae Falnges as per J 518 C -ISO 6162 | SIZES IN NB | W.P = PSI SERIES | |
| Butt Weld Flanges | 1/4’NB UO TO 5″ NB | 3000 | 6000 |
| Threaded Flanges – Male / Female Flanges | 1/4’NB UO TO 5″ NB | 3000 | 6000 |
| Socket Flanges | 1/4’NB UO TO 5″ NB | 3000 | 6000 |
| Blind Flanges | 1/4’NB UO TO 5″ NB | 3000 | 6000 |
| Spilt Falnges | 1/4’NB UO TO 5″ NB | 3000 | 6000 |
| Mono Flanges, Captive Flanges | 1/4’NB UO TO 5″ NB | 3000 | 6000 |
| Weld Nozze | 1/4’NB UO TO 5″ NB | 3000 | 6000 |
